华新科0402/1005_贴片电容_片容_贴片电容器

产品名称:华新科0402/1005_贴片电容_片容_贴片电容器

所属类别:华新科0402/1005_贴片电容_片容_贴片电容器

产品简介:华新科贴片电容0402/1005,华新科片容0402/1005,华新科贴片电容器0402/1005电 话:0769-89917065

详细介绍

华新科0402/1005

华新科0402/1005贴片电容基本参数

品牌WALSIN/华新科型号0402/1005介质材料陶瓷(瓷介)
应用范围低压外形方块状功率特性小功率
频率特性低频调节方式固定引线类型无引线
允许偏差±5(%)耐压值50(V)等效串联电阻(ESR)0(mΩ)
标称容量100pF~220uF(uF)损耗0额定电压6.3(V)
绝缘电阻0(mΩ)温度系数0

华新科0402/1005简介条

华新科0402/1005简介

华新科0402/1005 贴片电容 片容 贴片电容器 电路设计

2-1 Operating temperature
Operating temperature should be followed strictly within this specification, especially be careful
with maximum temperature.
1) Do not use capacitor above the maximum allowable operating temperature.
2) Surface temperature including self heating should be below maximum operating temperature.
(Due to dielectric loss, capacitor will heat itself when AC is applied. Especially at high frequencies
around its SRF, the heat might be so extreme that it may damage itself or the surrounding area.
Please design the circuit so that the maximum temperature of the capacitor including the self
heating to be below the maximum allowable operating temperature.
Temperature rise shall be below 20℃)
2-2 Operating voltage
1) Operating voltage across the terminals should be below the rated voltage.
When AC and DC are super imposed, the peak must be below the rated voltage. With AC or pulse
overshooting, Vp-p must be below the rated voltage.
--------------(1)&(2)
AC or Pulse with overshooting, Vp-p must be below the rated voltage.
----------(3),(4)&(5)
When the voltage is started to apply to the circuit or it is stopped applying, the irregular voltage
may be generated for a transit period because of resonance or switching. Be sure to use a
capacitor within rated voltage containing these irregular voltage.
2) Even below the rated voltage, if repetitive high frequency AC or pulse is applied, the reliability of the
capacitor may be reduced.
3) Voltage derating will greatly reduce the failure rate. Since the failure rate follows the 3 power law of
voltage, the failure rate used under Uw with UR rated product will be lowered as (Uw/UR) 3 .

华新科0402/1005尺寸

华新科0402/1005尺寸示意图

华新科0402/1005尺寸示意图2

华新科0402/1005数据条

华新科0402/1005数据图表 18680070280

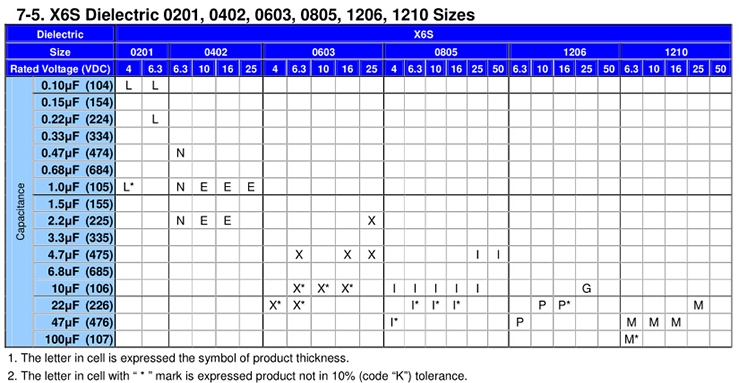

华新科0402/1005数据图表2

华新科0402/1005贴片电容结构条

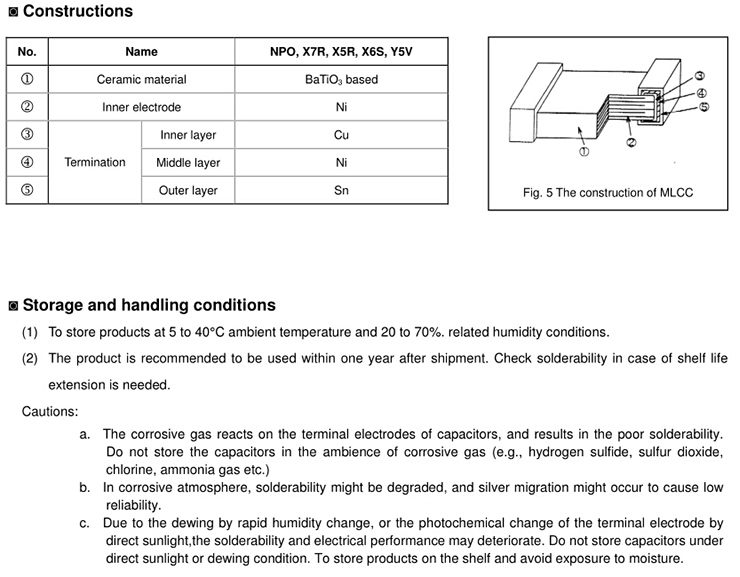

华新科0402/1005贴片电容结构示意图

华新科0402/1005贴片电容容量条

华新科0402/1005贴片电容容量示意图 18680070280

华新科0402/1005贴片电容容量示意图2

华新科0402/1005贴片电容容量示意图3

华新科0402/1005贴片电容容量示意图4

华新科0402/1005贴片电容容量示意图5

华新科0402/1005贴片电容容量示意图6

华新科0402/1005贴片电容容量示意图7

华新科0402/1005贴片电容容量示意图8

华新科0402/1005片容条

华新科0402/1005片容包装示意图

华新科0402/1005片容优势

华新科0402/1005电容器

华新科0402/1005电容器检验图

华新科0402/1005电容器库存图

0402/1005华新科贴片电容器

0402/1005华新科贴片电容器服务图

0402/1005华新科贴片电容 一级代理

0402/1005华新科贴片电容 18680070280

0402/1005华新科片容

0402/1005华新科片容案例条

0402/1005华新科片容案例

0402/1005华新科片容案例图

华新科片容0402/1005

华新科贴片电空0402/1005
